  We manufacturer and Export brass anchors in various sizes

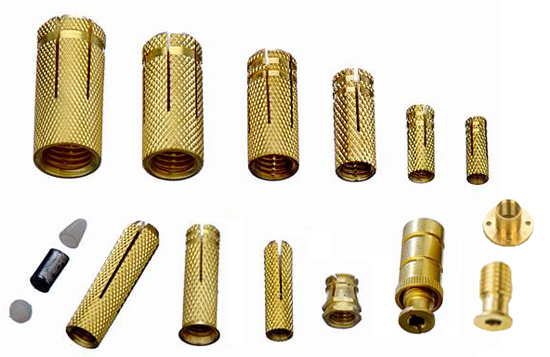

Brass Hardware Parts

 Anchor with Expander Concrete Anchor
 Drop Anchor Sleeve Anchors
 Slotted Anchors Knurling Anchors
Wood Anchors Pool Anchors
Thread Size (Metric) Outside Dia (mm) Full Length (mm) Safe Static Load Tension (kN)
M4 5 15 0.62
M5 6.5 20 0.87
M6 8 23 1.10
M8 10 28 1.40
M10 12 32 2.20
M12 15 38 2.30
M14 18 43 2.60
M16 20 50 2.85


Advantages :

  • It has Larger bearing area and acts as a socket
  • Internal tapering to enable the anchor to expand and to self lock the suspension rod into position
  • Suitable for solid brick, light concrete, hollow core concrete, panels and timber
  • The body in knurled for improved performance
  • Fixture can be removed and replaced

 Installation :

  • Drill a hole as per the external diameter of brass anchors
  • Hammer the brass anchors into the hole
  • Take a required bolt for screwing
  • Fix it with suitable spanner

 Application :

  • Used for all light and medium duty fixing in Building Industry
  • For e.g. : Electrical, Sanitary Installation work, Air - conditioning, Mounting of suspended ceilings
  • Wall mounting, Heating systems etc.

 Materials :

  • Free Cutting Brass As Per IS 319 Type (I)
  • Free Cutting Brass As Per BS 249 Type (I)
  • High Grade Free Cutting Brass
  • Any Special Brass Material Composition As Per Customers Requirements

 Plattings :

  • Brass Anchors Come Primarily in Natural Brass, However They Can be Coated with Chromium Nickel,
    Copper or SS for extra Strength and Looks.
  Any kind of brass anchors can be developed and supplied exactly as per customer drawings and samples.
